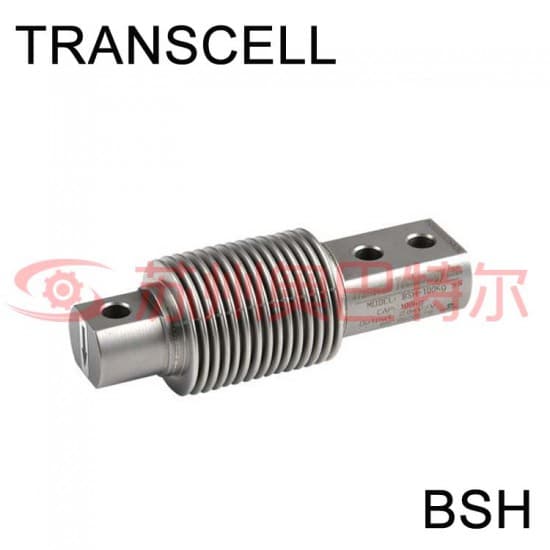

悬臂梁传感器，优质不锈钢材质安装简便、快速，稳定可靠，适用于灌装秤、皮带秤和配料秤等。
•悬臂梁式
•优质不锈钢材质
•全密封焊接
•高精度
•高稳定性
•高保护等级
•安装简便、快速
•可应用于恶劣工业环境
•适用于灌装秤、皮带秤和配料秤等
•Single ended shear beam load cell
•Senior stainless steel
•All sealed by welding
•High accuracy
•High stability
•Easy to install
•High protection class
•Use in tough industrial environment
•Suitable for tank-packing scales,belt scales and batching systems,etc
Capacities 量程
10kg,20kg,30kg,40kg,50kg,75kg,100kg,150kg,200kg,250kg,300kg,500kg
Schematic 接线方式
Red：＋ input 红色： ＋ 激励
Black：－ input 黑色： － 激励
Green：＋ output 绿色： ＋ 信号
White：－ output 白色：－ 信号
Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
150% |
|
Safe Overload |
安全载荷 |
-10ºC to + 40ºC |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
最大激励电压 |
15V DC/AC |
|
Cable Length |
导线长度 |
6m |
|
Cable Color Code |
导线颜色 |
ed(+E) Black(-E) Green(+S) White(-S) |
