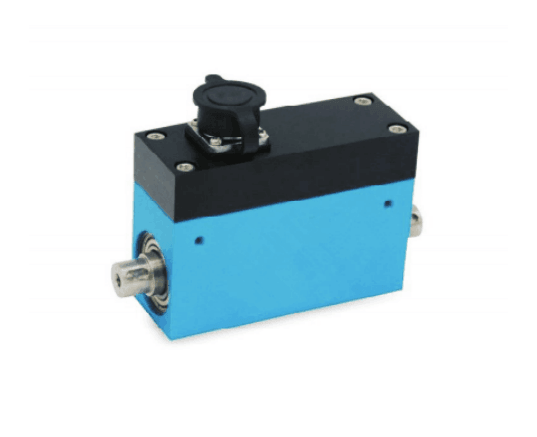

点击图片查看原图
产品特点 | Feature
电阻应变片敏感元件和集成电路构成的一体产品，精度高，性能稳定可靠
没有集流环等磨损件，可高速长时间运转，输出正反转扭矩信号
两端均为键连接，最高转速不超过4000转/分钟
Resistance strain is one of the products with high precision, stable and reliable performance, which is composed of sensitive components and integrated circuts
It doesn’t wear parts such as high-speed collecting ring, long time operation, reverse torgue signal output.
The ends are the highest bond connection speed of not more than 4000 rpm
量程 | Capacities
0-0.1，0.2，0.3，0.5，1，2，3，5 Nm
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
1.0-2.0mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. Effect on output |
灵敏度温漂 |
≤0.02% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.02% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to +70℃ |
|
Temp. Compensated |
温度补偿范围 |
-10℃ to +40℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387Ω±20Ω |
|
Output Impedance |
输出阻抗 |
350Ω±5Ω |
|
Insulation resistance |
绝缘阻抗 |
≥2000MΩ（50V DC） |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximim Excitation |
最大工作电压 |
10V DC/AC |
|
Construction |
电线 |
2m |
|
Type |
型号说明 |
①型号+②量程+③非标功能F 如：MRN-H01/1N.m |
|
Cable Color Code |
导线颜色 |
Red (+E) Black (-E) Green (+S) White (-S) |
