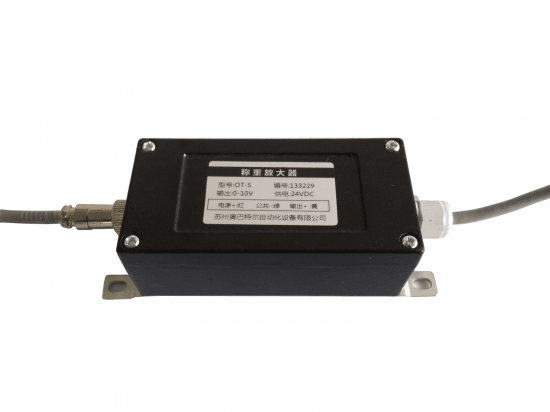

点击图片查看原图
产品特点 | Feature
Single channel analog input
Single channel analog output
External weight transmitter
Transmit the weak signal of analog sensor to amplified output signal
单路模拟量输入
单路4-20mA或0-5V、0-10V输出
外置式重量变送器
将模拟传感器的微弱信号进行放大输出
技术参数 | Specification
|
Nonlinearity |
非线性 |
±0.1%FS |
|
Power supply |
输入电压 |
15 to 24VDC |
|
Output Signal |
输出信号 |
4-20mA or 0-5VDC\0-10VDC(Single singnal) |
|
Load Cell Excitation Power |
传感器激励电源 |
5VDC |
|
Operation Temperature |
使用温度范围 |
-20℃ to +60℃ |
|
Storage Temperature |
存贮温度范围 |
-30℃ to +70℃ |
|
Zero Temperature drift |
零点温度飘移 |
<±0.1%F.S |
|
Load resistance |
负载阻抗 |
<500Ω |
|
Maximum Inptut Signal |
量大输入信号 |
±19mV |
|
Accurate Class |
准确度等级 |
0.3 to 0.5 |
|
Cable color code |
导线颜色 |
Red(E+) Yellow(sin+) Green(GND) |
选型 | Types
|
型号 type |
参数 Parameter |
|
OT-S |
4-20mA |
|
OT-S |
0-5V ±5V |
|
OT-S |
0-10V ±10V |
客户可以根据自己需求定制量程。
