产品特点 | Feature

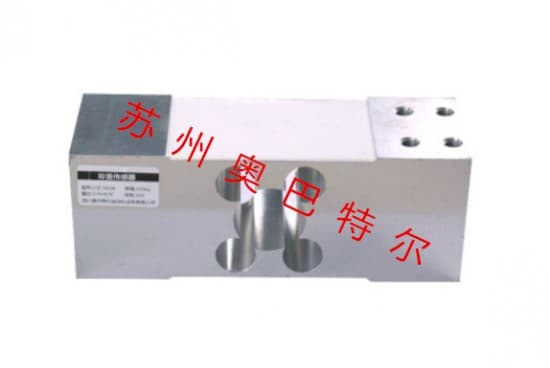

Single point load cell
Senior aluminun
Easy to install, high accuracy, high stabilit
Protected against corrosion by nickelplated treatment, high protection class
Suitable for belt scales, package systems, small hopper scales, bench scales, etc
单点式
优质铝合金材质
安装简便、快速，高精度，高稳定性
表层镀镍防腐处理， 高保护等级
适用于皮带秤、包装秤、小型料斗秤、台秤等
量程 | Capacities
60kg, 100kg, 150kg, 200kg,250kg, 300kg, 500kg
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
1.0-2.0mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃ to+40℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
450 Ω±10Ω |
|
Output Impedance |
输出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
9-12VDC |
|
Protection Class |
防护等级 |
IP65 |
|
Construction |
电线 |
150mm |
|
type |
型号说明 |
型号+‚量程+ƒ非标功能F(无非标则不需填写) 如：LSZ-S62/3kg |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
