威强电推出全新嵌入式主板 NANO-SE-i1
特征
EPIC SBC 支持 AMD® 嵌入式 G-系列 SoC
支持独立双显
1.35V DDR3L 1600/1333 MHz SDRAM 支持 8GB
S/PDIF 支持高清音频
IPMI 2.0 with iRIS-1010 模组支持
支持 COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA 和音频
威强电一键恢复解决方案可快速创建系统备份和恢复

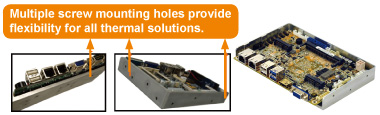

高性能低功耗散热设计
? 升级 AMD® 嵌入式 G-系列 SoC 提供更低 TDP 和更高的整体性能 ? 集成 AMD 下一代显卡 core 架构支持 discrete-class 图形处理 ? 双核或四核处理器 ? 集成安全解决方案硬件级别保护系统
规格
型号 NANO-SE-i1 SoC GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W)
GX-412HC on-board Soc (1.2GHz, quad-core, 2MB cache, TDP=7W)
GX-212JC on-board Soc (1.2GHz, dual-core,1MB cache, TDP=6W)
GX-411GA on-board Soc (1.0GHz, quad-core, 2MB cache, TDP=15W)
GX-209HA on-board Soc (1.0GHz, dual-core,1MB cache, TDP=9W) BIOS AMI UEFI BIOS 内存 1个 204-pin 1600/1333MHz 单通道 DDR3 & DDR3L SDRAM unbuffered SO-DIMM 插槽支持 8GB 图形引擎 Support DX11.1, OpenGL 4.1 and OpenCL1.2
UVD4.2 decode for H.264, MPEG2/4, VC1, MVC
VCE 2.0 encode for H.264, VCE 显示输出 Dual independent display
VGA (up to 2048x1536@60Hz)
HDMI (up to 3840x2160@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) Ethernet LAN1: Intel® I210-AT PCIe controller with NCSI support
LAN2: Intel® I211-AT PCIe controller Super IO Fintek F81866 外置 I/O 接口 2 x USB 2.0

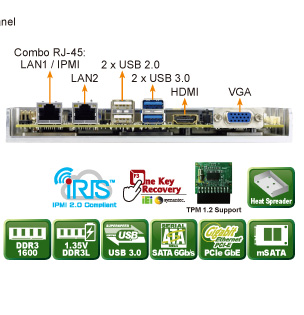

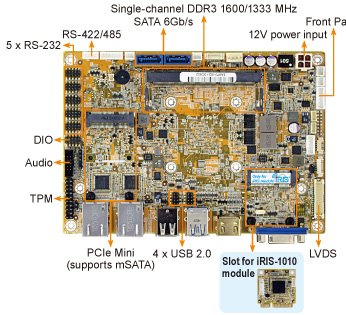

2 x USB 3.0 内置 I/O 接口 1 x KB/MS (1x6 pin) 4 x USB 2.0 (2x4 pin, P=2.0) 1 x RS-422/485 (1x4 pin, P=2.0) 5 x RS-232 (2x5 pin, P=2.0) 2 x SATA 6G/s with 5V SATA power connector (no RAID) iRIS 远程管理模组 1 x iRIS-1010 插槽 TPM 1 x TPM (2x10 pin) SMBus 1 x SMBus (1x4 pin) I2C 1 x I2C (1x4 pin) 音频 Realtek ALC892 HD Audio codec
1 x S/PIDF (1x4 pin)
1 x Analog audio (2x5 pin) 前面板 1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin) LAN LED 2 x LAN LED (1x2 pin) 扩展 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2) 看门狗定时器 Software programmable, support 1~255 sec. system reset 数字 I/O 1 x 8-bit 数字 I/O (2x5 pin) 风扇接口 1 x System smart fan (1x4 pin) 电源 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode 功耗 +12V@ 1.02A (AMD GX-415GA 1.5GHz CPU with 1600MHz 8GB DDR3 memory) 操作温度 0°C ~ 60°C 存储温度 -10°C ~ 70°C 操作湿度 5% ~ 95%, 无冷凝 尺寸 115mm x 165mm 重量 GW:850g / NW:350g

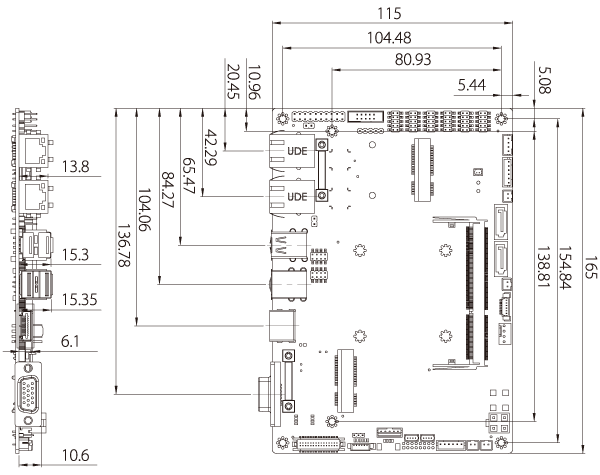

尺寸
订购信息型号 描述 NANO-SE-i1-4241-R10 EPIC SBC supports AMD® 28nm quad core GX-424CC 2.4GHz (25W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, iRIS-1010 and RoHS iRIS-1010-R10 IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over IP function) for PCIe Mini socket interface 32000-023800-RS PS/2 KB/MS cable, 135mm, P=2.0 32000-070301-RS Dual-port USB cable, 210mm, P=2.0 32205-003800-300-RS RS-422/485 cable, 200mm, P=2.0 TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17 Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.
包装清单 1 x NANO-SE-i1 single board computer with enclosure heatsink 1 x Audio cable 1 x Power cable 1 x One Key Recovery CD 2 x RS-232 cable 1 x QIG (Quick Installation Guide) 2 x SATA with power cable kit 1 x Utility CD
